St52 E235 E355 Seamless Galvanized Steel Tube EN10305-4 E215 For Railway Industry
Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube,
good brightness and antirust and antisepsis could improve after zinc coated.
| Product Name | Galvanized Steel Pipe/Tube |
| Standard | ASTM A53, BS1387-85, GB/T3091-08, DIN2440, JIS-G3444, EN10240, EN10255 |
| Grade | St52 E235 E355 |
| Type & Zinc Coating | Hot dip galvanized steel pipe (zinc coating: 60g/m2-275g/m2) |
| Pre-painted galvanized steel pipe (zinc coating: 80g/m2-275g/m2) |
| Outside diameter | Round pipe: 17mm-273mm |
| Square pipe:15mm x 15mm - 400mm x 400mm |
| Rectangular pipe: 10mm x 20mm -200mm x 400mm |
| Wall thickness | Round pipe: 0.6mm-12mm |
| | Square pipe:0.6mm-20mm |
| | Rectangular pipe: 0.6mm-20mm |
| Length | 2m-5.8m/6m/12m ( We can adjust length according to your request) |
Types of galvanized steel pipe
| STANDARDS | PRODUCTS | RANGES |
| IS:1239 (Part-I) | Mild Steel Tubes, Tubulars | 15mm NB – 150mm NB |
| IS:1161 | Mild Steel Tubes for Structural purpose | 15mm NB – 200mm NB |
| IS:3601 | Mild Steel tubes for Mechanical & General Engg. purpose | 20mm x 0.80mm to 165.10 x 7.00 mm |
| IS:3589 | ERW Pipes for water Gas & Sewrage | 168.3 x 4.00 mm to 219.1 x 7.00mm |
| IS:9295 | Steel Tubes for Idlers for Belt conveyors | 63.5 x 4.00 mm to 219.1 x 7.0 mm |
| IS:4270 | Steel Tubes for Water Wells | 114.3 x 5.00mm to 219.1mm x 7.1mm |
| IS:7138 | Steel Tubes for furniture | 20.0 x .60mm to 60.0 x 2.0mm |
| IS:4923 | Hollow Steel sections for structural purpose | 12.5 x 12.5 x 0.80 to
150 x 150 x 6.0mm
10 x 20 x 0.80mm to
150 x 200 x 6.0mm |
| IS:3074 | Steel Tubes for Automobile purpose | 19.7 x 1.00mm to 101.6 x 6.0mm |
| BS:1387 | Screwed & Socketed Steel Tubes & Tubulars | ½”NB to 6″NB 2.00 mm – 5.40 mm wall thick |
| BS:3601 | Steel Pipes & Tubes for pressure purpose | ½”NB to 6″NB 2.00 mm – 7.00 mm wall thickness |
| BS:6323 | Steel tubes for mechanical & general engineering purposes | 21.3″ to 219.1mm OD wall thickness-1.60-7.00 mm |
Mechanical Properties (Mpa):
| Grade | Yield strengtha Rehmin Mpa | Tensile strengtha Rmmin Mpa | Elongation A min % |
| E215 | 215 | 290-430 | 30 |
| E235 | 235 | 340-480 | 25 |
| E355 | 355 | 490-630 | 22 |
Applications:
Zinc coated precision steel tubes (galvanized tubes) are destined for hydraulic and pneumatic pressure distribution (so called HPL tubes), production of automobile components, utility vehicles as well as for production of machine products such as fittings and joints. Cold drawn precision tubes are used as the semi-finished product and they are made from rolled seamless tubes. Precision tubes HPL types are made from carbon and alloyed steel.
Application areas:
Automotive, military, railway industry, with high requirement of the tubes brightness, cleanness, antirust, and antisepsis.

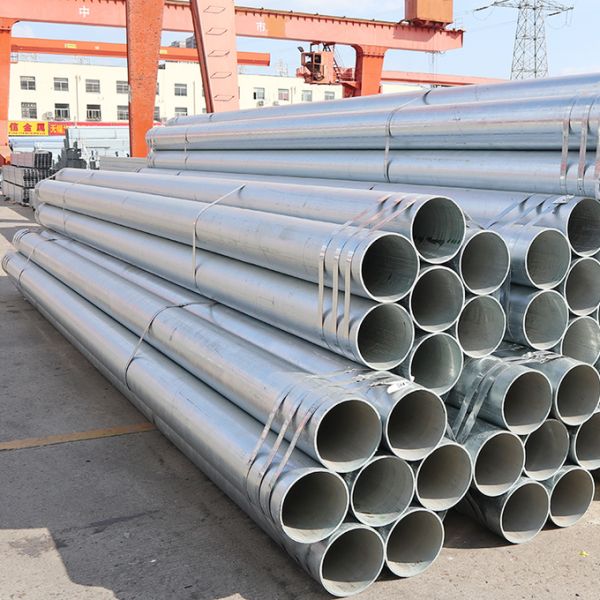

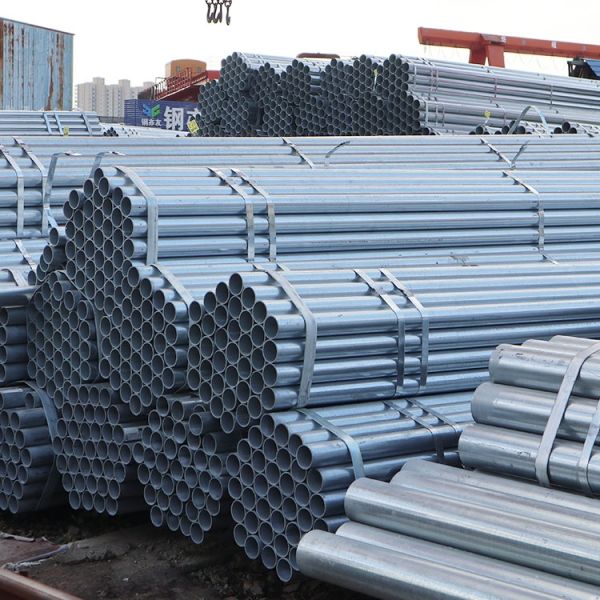

Product Photo
Factroy Pictures
Pipe & Tube Processing
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples,you need to send us you detailed receiving address (including post code) and your
DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
